Cracking in acrylic during CNC milling is a common yet frustrating issue that many of us in the CNC Milling Acrylic supply business encounter. As a reliable supplier in this field, I've dealt with numerous cases of acrylic cracking, and I'm here to share some effective strategies to handle this problem.
Understanding the Causes of Acrylic Cracking
Before we delve into solutions, it's crucial to understand why cracking occurs during CNC milling. Acrylic, a thermoplastic material, is sensitive to heat and mechanical stress.
Heat Generation
During the CNC milling process, the friction between the cutting tool and the acrylic generates heat. If this heat is not dissipated properly, it can cause the acrylic to soften and deform. When the material cools rapidly, internal stresses build up, leading to cracking. High spindle speeds and feed rates can exacerbate this problem, as they increase the amount of heat generated.
Mechanical Stress
The cutting forces applied by the milling tool can also cause stress on the acrylic. If the tool is not sharp or is misaligned, it can create uneven pressure on the material, leading to cracks. Additionally, improper clamping of the acrylic can cause it to shift during milling, resulting in stress concentrations and cracking.
Material Quality
The quality of the acrylic itself can also play a role in cracking. Low - quality acrylic may have internal defects, such as voids or inclusions, which can act as stress concentrators and make the material more prone to cracking.
Strategies to Prevent Acrylic Cracking
Optimize Cutting Parameters
- Spindle Speed: Reducing the spindle speed can help reduce heat generation. A lower speed allows the cutting tool to remove material more slowly, giving the heat more time to dissipate. However, it's important to find the right balance, as too low a speed can also cause the tool to rub against the material, increasing friction and heat.
- Feed Rate: Similar to spindle speed, adjusting the feed rate is crucial. A slower feed rate can prevent excessive heat buildup and reduce the cutting forces on the acrylic. This gives the material more time to respond to the cutting action without being over - stressed.
- Depth of Cut: Limiting the depth of cut per pass can also help prevent cracking. A smaller depth of cut reduces the amount of material being removed at once, which in turn reduces the cutting forces and heat generation.
Use the Right Cutting Tools
- Sharpness: Using sharp cutting tools is essential. Dull tools require more force to cut through the acrylic, which increases heat and stress. Regularly inspect and replace cutting tools to ensure they are in good condition.
- Tool Geometry: The geometry of the cutting tool can also affect the milling process. For acrylic, tools with a high helix angle are often recommended, as they can help evacuate chips more effectively and reduce heat buildup.
Cooling and Lubrication
- Coolant: Using a coolant during the milling process can help dissipate heat and reduce friction. Water - based coolants are a popular choice for acrylic milling, as they are non - reactive and can effectively cool the cutting area. However, it's important to ensure that the coolant is properly applied and does not cause the acrylic to warp or absorb moisture.
- Air Blowing: In some cases, air blowing can be used to cool the cutting area and remove chips. This is a simple and cost - effective method, but it may not be as effective as using a coolant in high - speed milling operations.
Proper Clamping
- Even Pressure: Ensure that the acrylic is clamped evenly to the milling table. Uneven clamping can cause the material to warp or shift during milling, leading to stress concentrations and cracking. Use soft jaw clamps or other clamping methods that distribute pressure evenly across the acrylic surface.
- Avoid Over - clamping: Over - clamping can also cause the acrylic to crack. Apply just enough pressure to hold the material in place without deforming it.
Material Selection
- High - Quality Acrylic: Always choose high - quality acrylic materials for your milling projects. Look for materials that are free of defects and have a consistent composition. High - quality acrylic is more resistant to cracking and can provide better results in the milling process.
Troubleshooting Cracking Issues
Even with the best prevention strategies, cracking may still occur. Here are some steps to troubleshoot and address the problem:
Analyze the Cracks
- Location and Pattern: Examine the location and pattern of the cracks. Cracks that occur near the edges of the acrylic may be caused by improper clamping or excessive cutting forces. Cracks in the middle of the material may be due to heat buildup or internal stress.
- Size and Shape: The size and shape of the cracks can also provide clues. Fine, hairline cracks may be caused by heat, while larger, more irregular cracks may be due to mechanical stress.
Adjust the Milling Process
- Based on Analysis: Once you have analyzed the cracks, make appropriate adjustments to the milling process. If the cracks are due to heat, reduce the spindle speed or increase the coolant flow. If the cracks are caused by mechanical stress, check the clamping and tool alignment.
Test and Iterate
- Small - Scale Tests: Before making large - scale changes to your production process, conduct small - scale tests on sample pieces of acrylic. This allows you to evaluate the effectiveness of your adjustments without wasting a large amount of material.
Conclusion
Dealing with cracking in acrylic during CNC milling requires a combination of understanding the causes, implementing preventive measures, and troubleshooting effectively. By optimizing cutting parameters, using the right tools, providing proper cooling and lubrication, and ensuring correct clamping, you can significantly reduce the risk of cracking and improve the quality of your CNC - milled acrylic products.

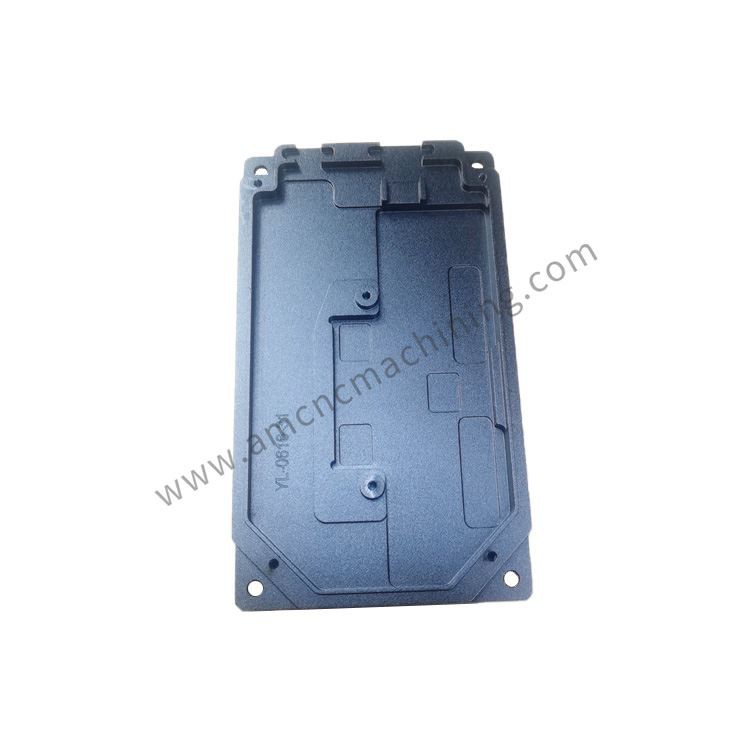

As a CNC Milling Acrylic supplier, we are committed to providing high - quality products and solutions to our customers. If you are facing issues with acrylic cracking or need more information about our Aluminum CNC Milling Service, CNC Component Services, or CNC Precision Components, please don't hesitate to contact us for a detailed discussion. We are here to help you achieve the best results in your projects.
